MPT Type Mylar Tape Encapsulation
REQUEST A QUOTE
PREV
NEXT
FEATURES
Application
Capacitors are primarily designed for coupling, decoupling, and filtering electronic circuits.
They are only widely accepted in the radio and television industry, but also apply to industrial electronics.
High frequency, DC, AC and pulse high current occasions.
Such as: lamps, monitoring equipment, power supplies, etc.
Features
No defect, no fault, high reliability.
No short circuit, self-healing.
These types of capacitors are completely moisture-proof by coating epoxy or plastic case and mylar tape.
Featured Apps
Self-healing properties
Flame retardant epoxy resin (UL 94V-0)
Coating Type (Powder Encapsulation)
Available in loose boxes and loose polybags
Reference data
Capacitance range: 0.01 to 10μF
Capacitance Tolerance: ±5%, ±10%
Rated voltage Vdc: 100 V，250 V，400 V，630 V，1000 V
Climate: 40/105/56
Temperature range: -40℃〜+ 105℃
Coating material: Complies with UL94-V0

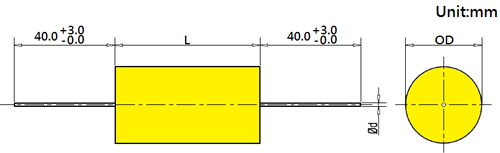

DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
L
OD
d
Vac
PART NO.
100
(2A)
0.01
15
5.5
0.6
50
MPT103K(J)2AN00
0.015
15
5.5
0.6
MPT153K(J)2AN00
0.022
15
5.5
0.6
MPT223K(J)2AN00
0.033
15
5.5
0.6
MPT333K(J)2AN00
0.047
15
5.5
0.6
MPT473K(J)2AN00
0.068
15
5.5
0.6
MPT683K(J)2AN00
0.1
15
6
0.6
MPT104K(J)2AN00
0.15
15
6
0.6
MPT154K(J)2AN00
0.22
15
7
0.6
MPT224K(J)2AN00
0.33
19
7
0.6
MET334K(J)2AO00
0.47
19
8
0.6
MPT473K(J)2AO00
0.68
19
9
0.6
MPT683K(J)2AO00
1.0
19
10
0.8
MPT105K(J)2AQ00
1.5
26
11
0.8
MPT155K(J)2AR00
2.2
26
11
0.8
MPT225K(J)2AR00
3.3
26
14
0.8
MPT335K(J)2AR00
4.7
31
15
0.8
MPT475K(J)2AS00
6.8
31
18
0.8
MPT685K(J)2AS00
10
31
21
0.8
MPT106K(J)2AS00
15
49
26
0.8
MPT156K(J)2AY00
22
58
29
1.0
MPT685K(J)2AK00
33
58
34
1.0
MPT106K(J)2AK00
DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
L
OD
d
Vac
PART NO.
250
(2E)
0.01
15
5.5
0.6
125
MPT103K(J)2EN00
0.015
15
5.5
0.6
MPT153K(J)2EN00
0.022
15
5.5
0.6
MPT223K(J)2EN00
0.033
15
5.5
0.6
MPT333K(J)2EN00
0.047
15
6
0.6
MPT473K(J)2EN00
0.068
15
6
0.6
MPT683K(J)2EN00
0.1
15
7
0.6
MPT104K(J)2EN00
0.15
15
8
0.6
MPT154K(J)2EN00
0.22
19
8
0.6
MPT224K(J)2EO00
0.33
19
9
0.6
MET334K(J)2EO00
0.47
19
10
0.8
MPT473K(J)2EO00
0.68
26
9
0.8
MPT683K(J)2ER00
1.0
26
11
0.8
MPT683K(J)2ER00
1.5
26
12
0.8
MPT105K(J)2ER00
2.2
31
14
0.8
MPT105K(J)2ES00
3.3
31
17
0.8
MPT155K(J)2ES00
4.7
31
18
0.8
MPT155K(J)2ES00
6.8
49
19
0.8
MPT225K(J)2EY00
10
49
19
0.8
MPT335K(J)2EY00
15
49
21
0.8
MPT475K(J)2EY00
22
49
28
0.8
MPT685K(J)2EY00
33
49
35
0.8
MPT106K(J)2EY00
DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
L
OD
d
Vac
PART NO.
400
(2G)
0.01
15
6
0.6
220
MPT103K(J)2GN00
0.015
15
6
0.6
MPT153K(J)2GN00
0.022
15
8
0.6
MPT223K(J)2GN00
0.033
15
7
0.6
MPT333K(J)2GN00
0.047
15
7
0.6
MPT473K(J)2GN00
0.068
15
10
0.6
MPT683K(J)2GN00
0.1
19
8
0.6
MPT104K(J)2GO00
0.15
19
8
0.6
MPT154K(J)2GO00
0.22
19
9
0.8
MPT224K(J)2GO00
0.33
26
10
0.8
MET334K(J)2GR00
0.47
26
12
0.8
MPT473K(J)2GR00
0.68
26
13
0.8
MPT683K(J)2GR00
1.0
31
15
0.8
MPT683K(J)2GS00
1.5
31
18
0.8
MPT105K(J)2GS00
2.2
31
20
0.8
MPT105K(J)2GS00
3.3
49
20
0.8
MPT155K(J)2GY00
4.7
49
26
0.8
MPT155K(J)2GY00
6.8
49
26
0.8
MPT225K(J)2GY00
10
49
28
0.8
MPT335K(J)2GY00
15
49
34
0.8
MPT475K(J)2GY00
22
49
42
1.0
MPT685K(J)2GY00
33
49
51
1.0
MPT106K(J)2GY00
DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
L
OD
d
Vac
PART NO.
630/1000
(2J/3A)
0.01
15
6
0.6
400/500
MPT103K(J)2JN00
0.015
15
7
0.6
MPT153K(J)2JN00
0.022
15
8
0.6
MPT223K(J)2JN00
0.033
15
9
0.6
MPT333K(J)2JN00
0.047
19
8
0.6
MPT473K(J)2JO00
0.068
19
9
0.6
MPT683K(J)2JO00
0.1
19
10
0.8
MPT104K(J)2JO00
0.15
26
11
0.8
MPT154K(J)2JR00
0.22
26
13
0.8
MPT224K(J)2JR00
0.33
26
14
0.8
MET334K(J)2JR00
0.47
31
15
0.8
MPT473K(J)2JS00
0.68
31
18
0.8
MPT683K(J)2JS00
1.0
31
21
0.8
MPT683K(J)2JS00
1.5
49
19
0.8
MPT105K(J)2JY00
2.2
49
23
0.8
MPT105K(J)2JY00
3.3
49
27
0.8
MPT155K(J)2JY00
4.7
49
31
0.8
MPT155K(J)2JY00
6.8
49
31
0.8
MPT225K(J)2JY00
10
49
37
1.0
MPT335K(J)2JY00
15
49
45
1.0
MPT475K(J)2JY00
22
49
55
1.0
MPT685K(J)2JY00
33
61
59
1.0
MPT106K(J)2JA00
Customized design and service
